Aga Deluxe
The Aga Deluxe has been in continuous production from the 1970s and is still a current model making it the most successful of the Aga models. A reconditioned Aga Deluxe uses the same design principles as the Traditional model but with its clean lines and unornamented appearance, it has a contemporary look which allows you to be more adventurous with the colours you choose.
The Deluxe model is available in oil, gas and 13A electric models, as is the Traditional, but H&F can also offer the Deluxe as anthracite, solid fuel appliance. There are both two and four oven versions and again you have options for two-ring gas or electric hobs for the extension cabinet.
Some models can be matched with the Aga Companion Module to give you fuel source diversity, as the Module has electric ovens and options for either a four ring gas or ceramic electric hob.
All models have chrome finished hot plate covers as standard and can have the flue connected from the top of the flue box or for a discreet connection; you can use the rear of the box

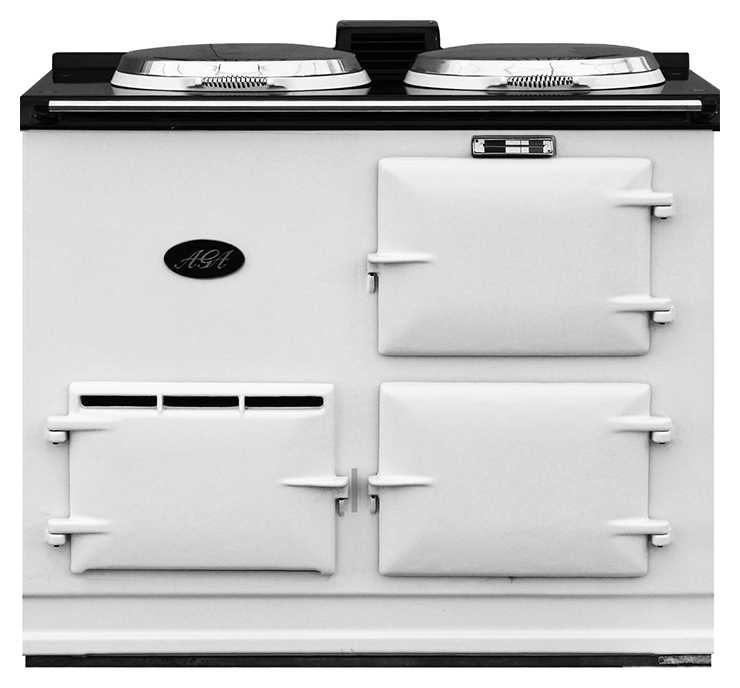

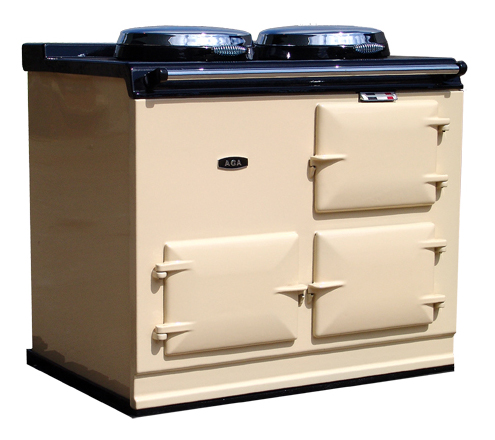

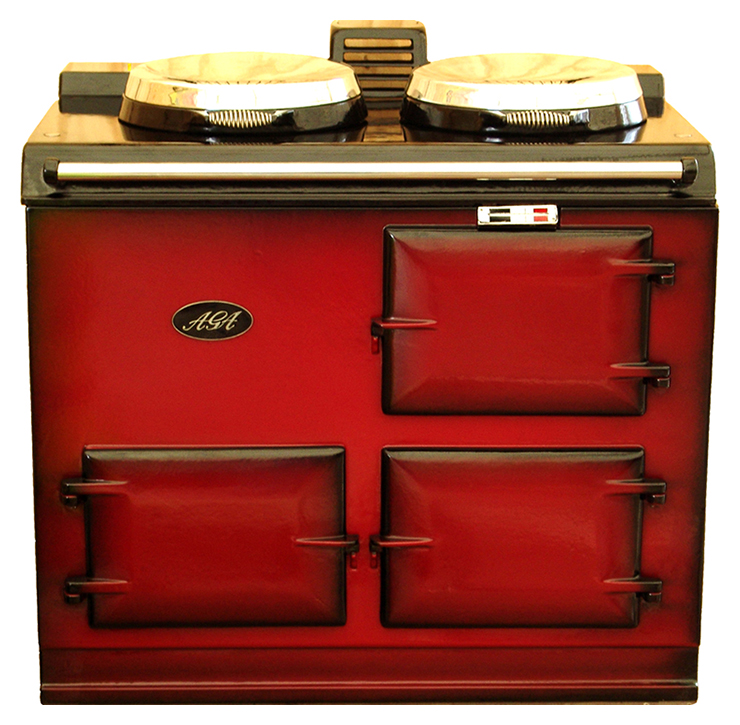

Aga Deluxe 2 Oven Configurations
- Oil, wick
- Natural gad or LPG
- 13A Electric

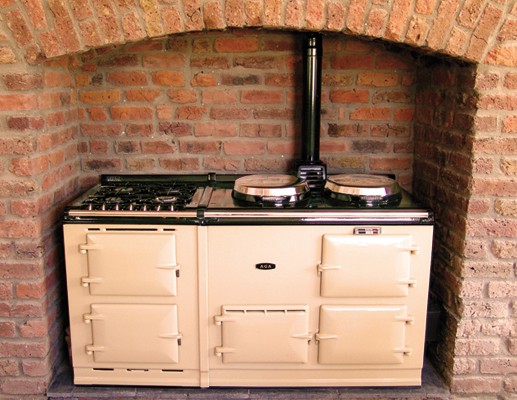

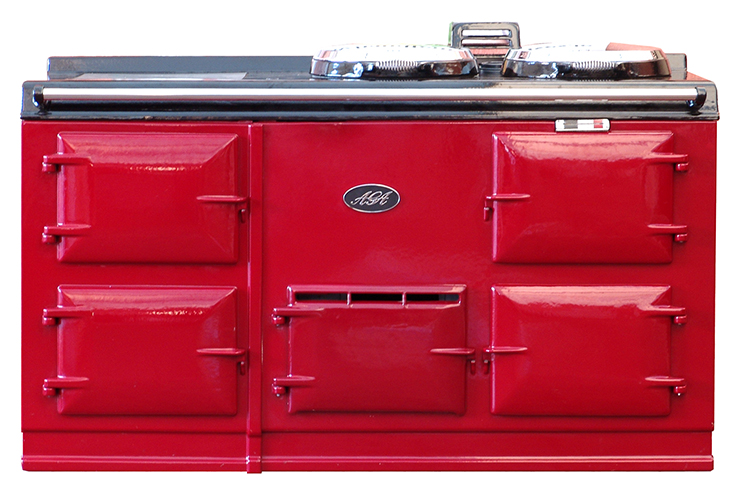

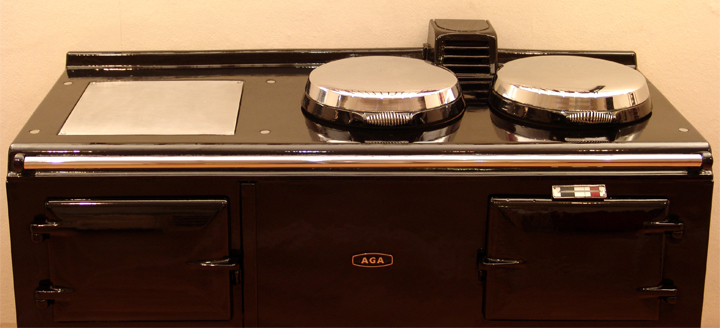

Aga Deluxe 4 Oven Configurations
- Oil, wick
- Natural gad or LPG
- 13A Electric
Optional Extras
- Domestic Hot Water Boiler (not on electric models)
- Ready Made Steel Plinth
- Electric Power Fan Flue
- Two Ring Electric Ceramic or Gas Hob (replaces warming plate on 4 oven model)
Specifications – Two Oven Models
- Height 850mm
- Width 987mm
- Depth 679mm
- Depth to bracket 756mm
- Flue 4” (100mm) rear centred: H889mm x 467mm from RH edge. Top connection option available
- Boiler flow pipe 1” BSP centred: H626mm x 53mm from back edge*
- Boiler return pipe 1” BSP centred: H499mm x 53mm from back edge*
- Roasting oven W365mm x H265mm x D500mm
- Baking oven W365mm x H265mm x D500mm
- Boiling hotplate 300mm diameter circle
- Simmering hotplate 345mm diameter circle
- Fuel: solid fuel (anthracite only), gas LPG, Natural Gas, oil (28 second kerosene) vaporising burner and 13 amp electric
Maximum weight: 480Kg
Heat output to room: From 4.2Kw
*Boiler pipes position can be on RH side or from the top on some models, please ask for details.
Specifications – Four Oven Models
Maximum weight: 635Kg
Width: 1487mm
Selection of 2 ring gas & electric hobs available for the top of the extension cabinet to replace the standard issue warming plate.
Notes
- These appliance are shipped in kit form and must be assembled on site
- They cannot be used to heat radiators
- There is no solid fuel option for Standard model
- Electric models cannot have a boiler fitted
Click here to view our range of enamel colours or contact us for prices and availability.
We offer a full installation service; however the price may vary depending on any additional preparation work required such as for the chimney or plumbing.
Due to the nature of the casting process all dimensions are subject to slight +/- variations.
