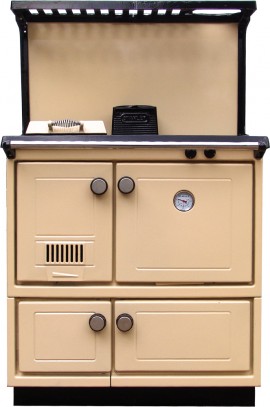

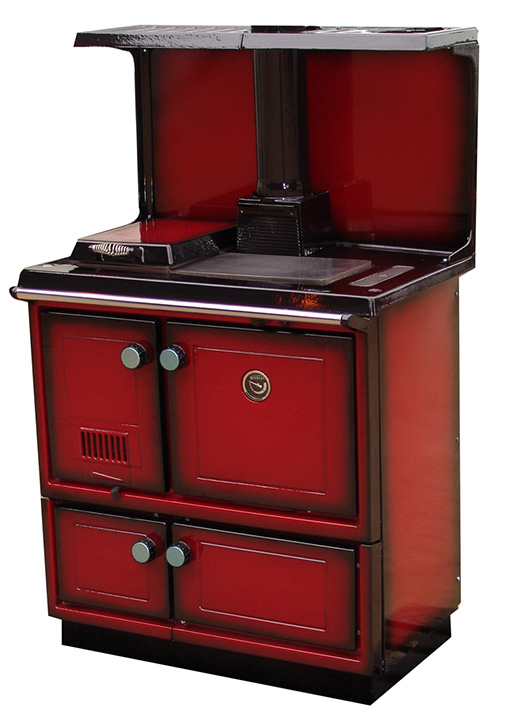

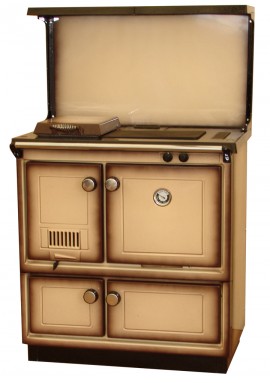

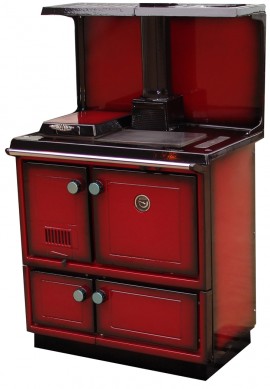

Stanley 90

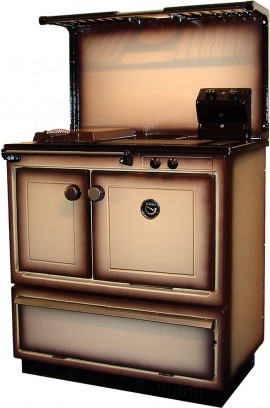

A reconditioned Stanley 90 from GMH offers the same heat output and has similar controls to the 80 model but with slight enhancements such as the addition of a warming oven under the main oven, a cast iron hotplate cover and more contemporary styling. There are several variants such as the Stanley 90 Deluxe, Stanley 90 3-door and Stanley 90 4-door.

There are options for a plate rack & splash back panel and hot plate cover for some models. The solid fuel model is a multi-fuel appliance and can be fired from the front or top on some models.

Stanley 90 Configurations

  • Solid fuel and boiler for up to 10 radiators


  • Large capacity roasting oven
  • Hotplate with graded heating areas
  • Hotplate cover
  • Second warming oven
  • Heats 8 to 10 radiators
  • Thermostatically controlled central heating, water and oven
  • Optional plate rack and splash back

Specifications - Solid Fuel Model

Stanley 90 Solid Fuel
  1. Height 920mm
  2. Width 890mm
  3. Depth 568mm
  4. Depth to bracket 618mm
  5. Flue 5” (125mm) rear centered: H755mm x 396mm from RH edge of hob. Top connection option
  6. Boiler flow pipe 1” BSP rear connection, centered: H861mm x 104mm from LH side panel edge
  7. Boiler return pipe 1” BSP rear connection, centered: H610mm x 104mm from LH side panel edge
  8. Boiling hotplate W268mm x L252mm
  9. Simmering hotplate W390mm x L246mm
  10. Main oven W400mm x H325mm x D396mm
  11. Warming oven W492mm x H300mm x D435mm
  12. Storage space W325mm x H300 x D435mm
  13. Fuel: multi-fuel: wood, coal & turf
  14. Firebox dimensions: W250mm x H320mm x D390mm
  15. Height to top of plate rack: 1400mm

Heat Output to Water

  • U9 boiler 13.76kW sufficient for up to 9 radiators

Click here to view our range of enamel colours or contact us for prices and availability.

We offer a full installation service; however the price may vary depending on any additional preparation work required such as for the chimney or plumbing.

Due to the nature of the casting process all dimensions are subject to slight +/- variations.
