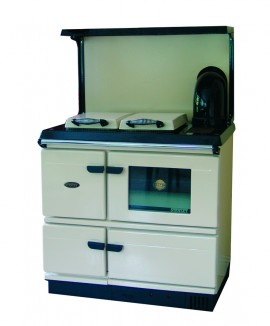

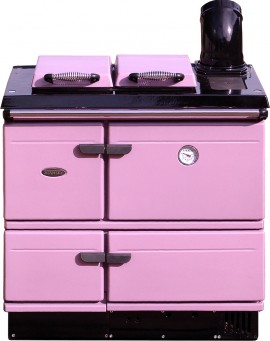

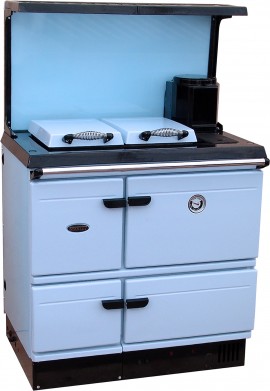

Stanley Twin Burner

A reconditioned Stanley Twin Burner from GMH is the most powerful heating cooker in our Stanley range, capable of heating up to 20 radiators.

It is only available with twin pressure jet kerosene burners: one for the heating and the second for cooking. The twin burner approach allows for fully independent control of cooking and heating with independent timer and thermostats for each.

This is a big, bold cooker with a modern look and clean, neat lines suited to either plain or shaded coloration. This range comes with dual hot plate covers as standard and there are options available for a plate rack & splash back panel and you can choose between a glass or a solid-fronted door for the main oven. There is a second warming oven under the main oven.

Stanley Twin Burner Configurations

  • Dual oil burner and boilder for up to 20 radiators

Features

  • Large capacity roasting oven
  • Twin hotplate covers
  • Second warming oven
  • Heats up to 20 radiators
  • Thermostatically controlled central heating, water and oven/li>
  • Optional plate rack and splash back


Specifications

Stanley Twin Burner
  1. Height 920mm
  2. Width 920mm
  3. Depth to bracket 680mm
  4. Flue 6” (150mm) top connection centred 130mm from RH edge and 130mm from rear edge. For rear connection using 90° bend provided: H1047 x 130mm from RH edge of hob
  5. Boiler flow pipe 1” BSP centred: H765mm x 140mm from LH panel edge
  6. Boiler return pipe 1” BSP centred: H400mm x 140mm from LH panel edge
  7. Roasting oven W395mm x H305mm x D410mm
  8. Warming oven W395mm x H225mm x D410mm
  9. Hotplate W550mm x L320mm boiling side
  10. Hotplate simmering side
  11. Fuel: 28 second kerosene (see table below)
  12. 2 channel timer: Ch1: Boiler Ch2: Ovens
  13. Height of opened lid, full extent: 1355mm
  14. Firebox dimensions: W430mm x H450mm x D220mm
  15. Oil line connection: ¼” BSP Taper on LH side at rear of side panel
  16. Electrical connection next to oil line: 240VAC, 50Hz, 3 amp fused

Height to top of Plate Rack: 1430mm or 1480mm depending on model

Heat Output to Water

  • Maximum Heat Input: 29.3 kW or 100,000 Btu
  • Maximum number of radiators: 20

Notes

  • Max. Weight 385Kg

Click here to view our range of enamel colours or contact us for prices and availability.

We offer a full installation service; however the price may vary depending on any additional preparation work required such as for the chimney or plumbing.

Due to the nature of the casting process all dimensions are subject to slight +/- variations.
